Products Overview

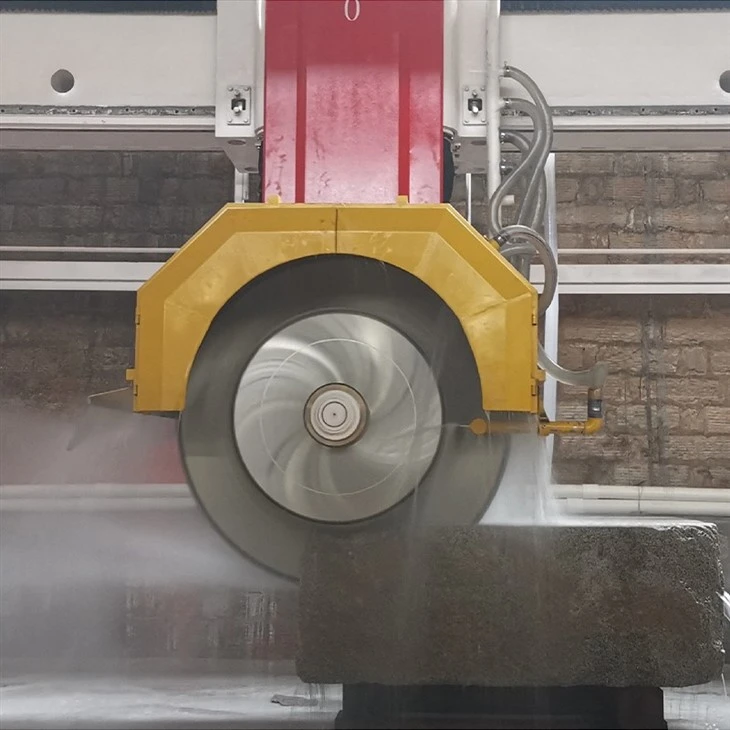

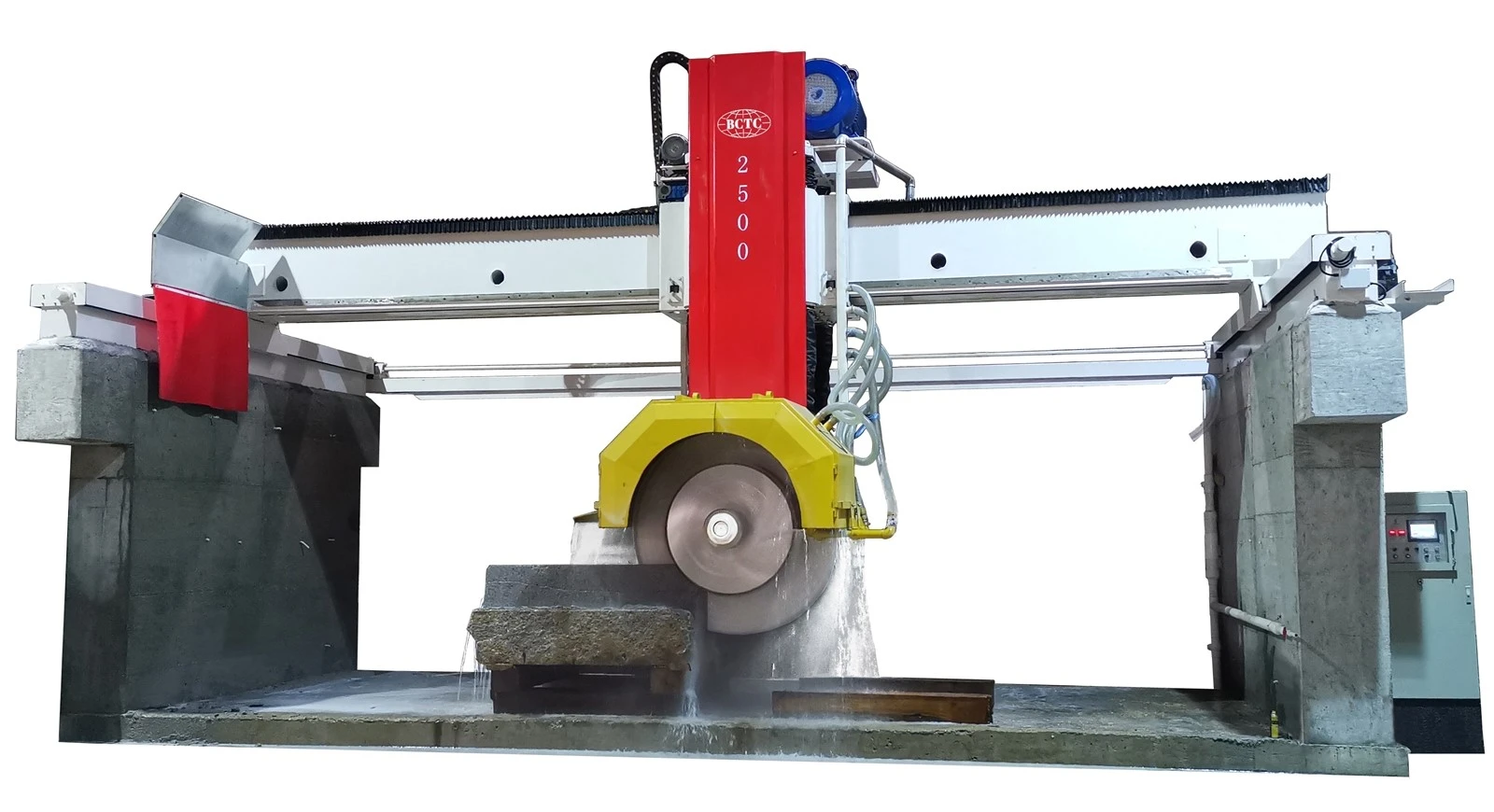

This block cutting machine specially designed for one-pass slitting of natural stone blocks into standard slabs, this machine is equipped with Siemens PLC control system and HIWIN oil-immersed linear guide rails from Taiwan. It supports up to 16 diamond saw blades mounted at the same time, with a maximum blade diameter of Φ2500mm and a lifting stroke of 1350mm. It can efficiently process large blocks of granite, marble, limestone, sandstone and other stones into uniform slabs with thickness ranging from 15mm to 50mm.

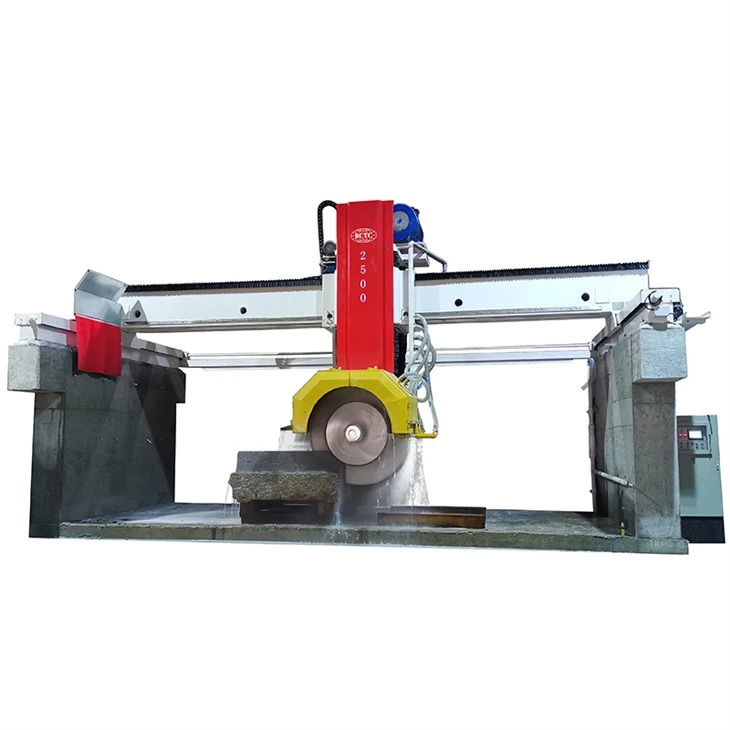

With a four-column gantry heavy-duty structure, precision lead screw drive and fully enclosed lubrication system, the cutting flatness is ≤ ±0.1mm. It features stable operation, low maintenance cost and long service life, making it an ideal primary block-breaking solution for medium and large stone processing plants.
Main Features

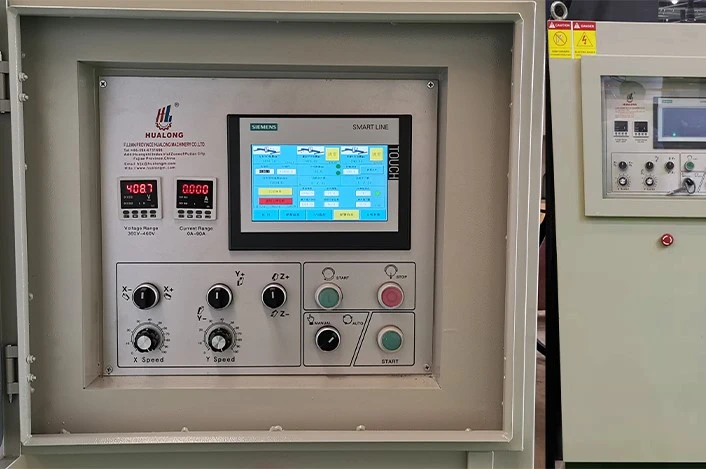

Intelligent Siemens Control System
Adopts Siemens PLC main unit with touch screen HMI, supporting fully automatic cutting operation.
Cutting parameters can be preset, saved and recalled for different stone materials and slab thicknesses.
Automatically adjusts feed speed according to real-time cutting load, reducing labor intensity.
High-Precision Transmission & Guide System
X and Y axes adopt HIWIN oil-immersed linear guide rails from Taiwan, dust-proof and water-proof, with precision service life over 15 years.
Double-slider cutter head is synchronously driven by precision lead screw, running smoothly without shaking.
Cutting flatness error ≤ ±0.1mm, high slab thickness consistency and low polishing loss in subsequent processes.
High-Efficiency Multi-Blade Cutting

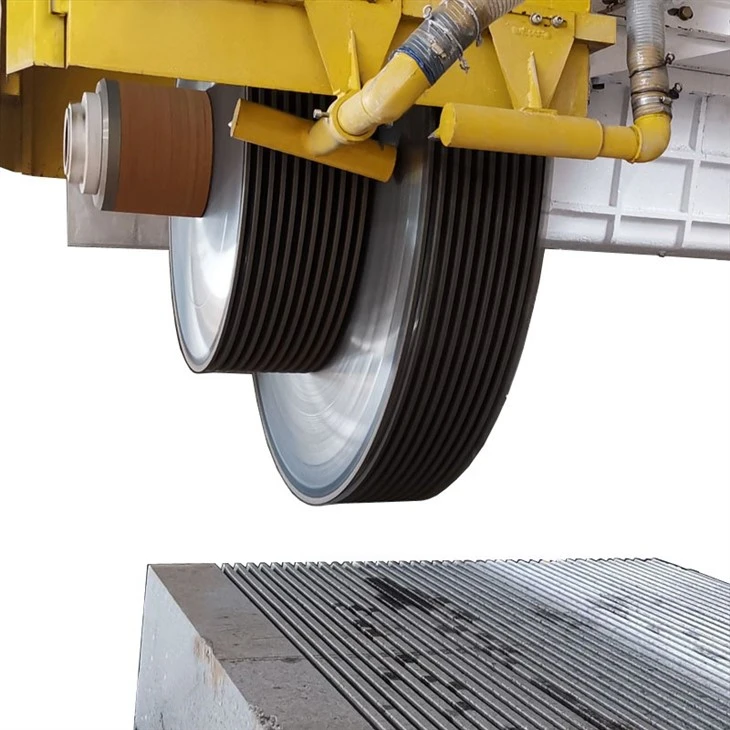

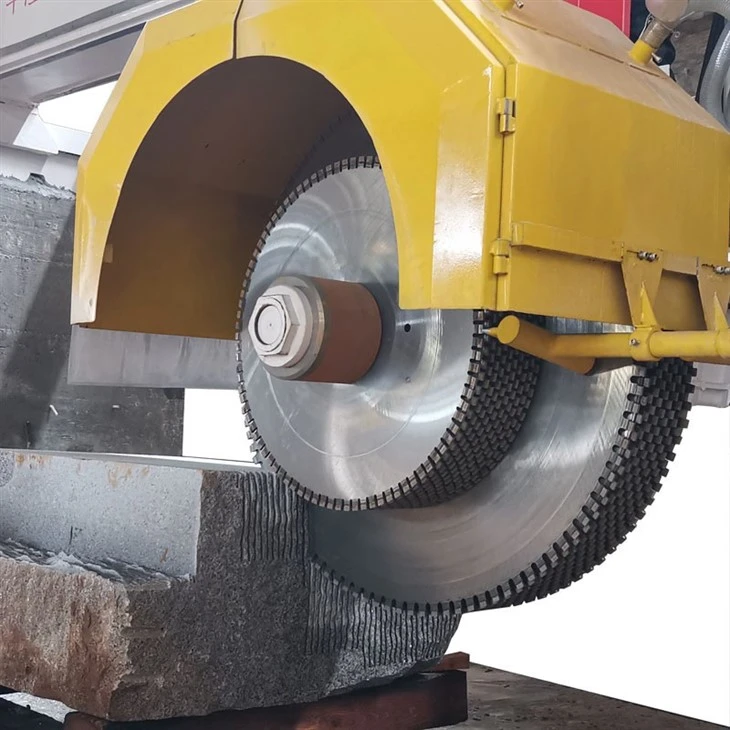

Supports up to 16 diamond saw blades installed simultaneously, completing multi-slab cutting in a single pass.

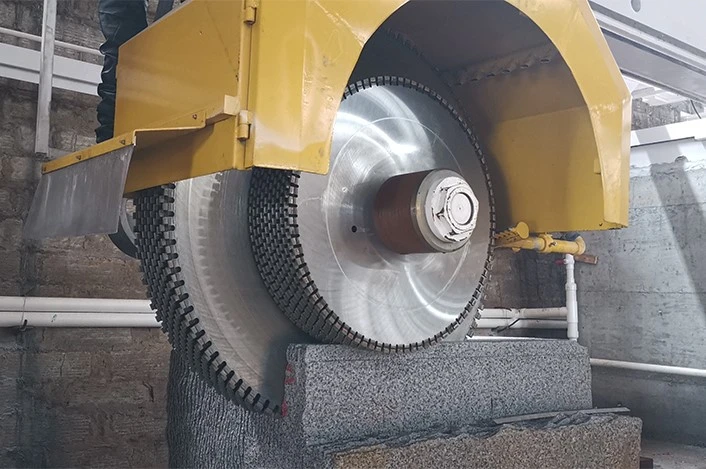

Compatible with large-diameter blades up to Φ2500mm, capable of processing large-size blocks directly.
Equipped with 55kW 4-pole main motor, delivering strong and stable power output.
Gross installed power: 62.3kW.

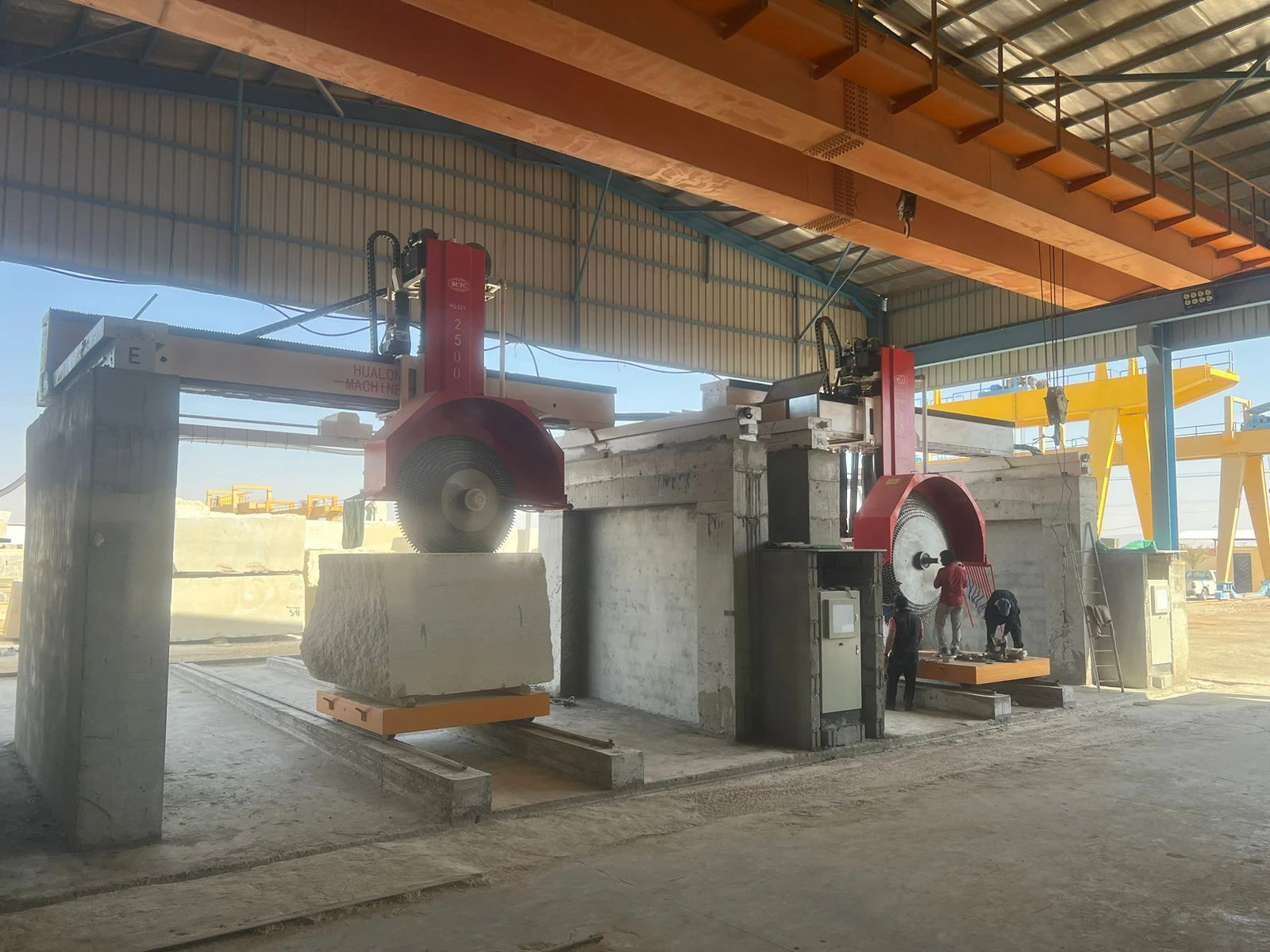

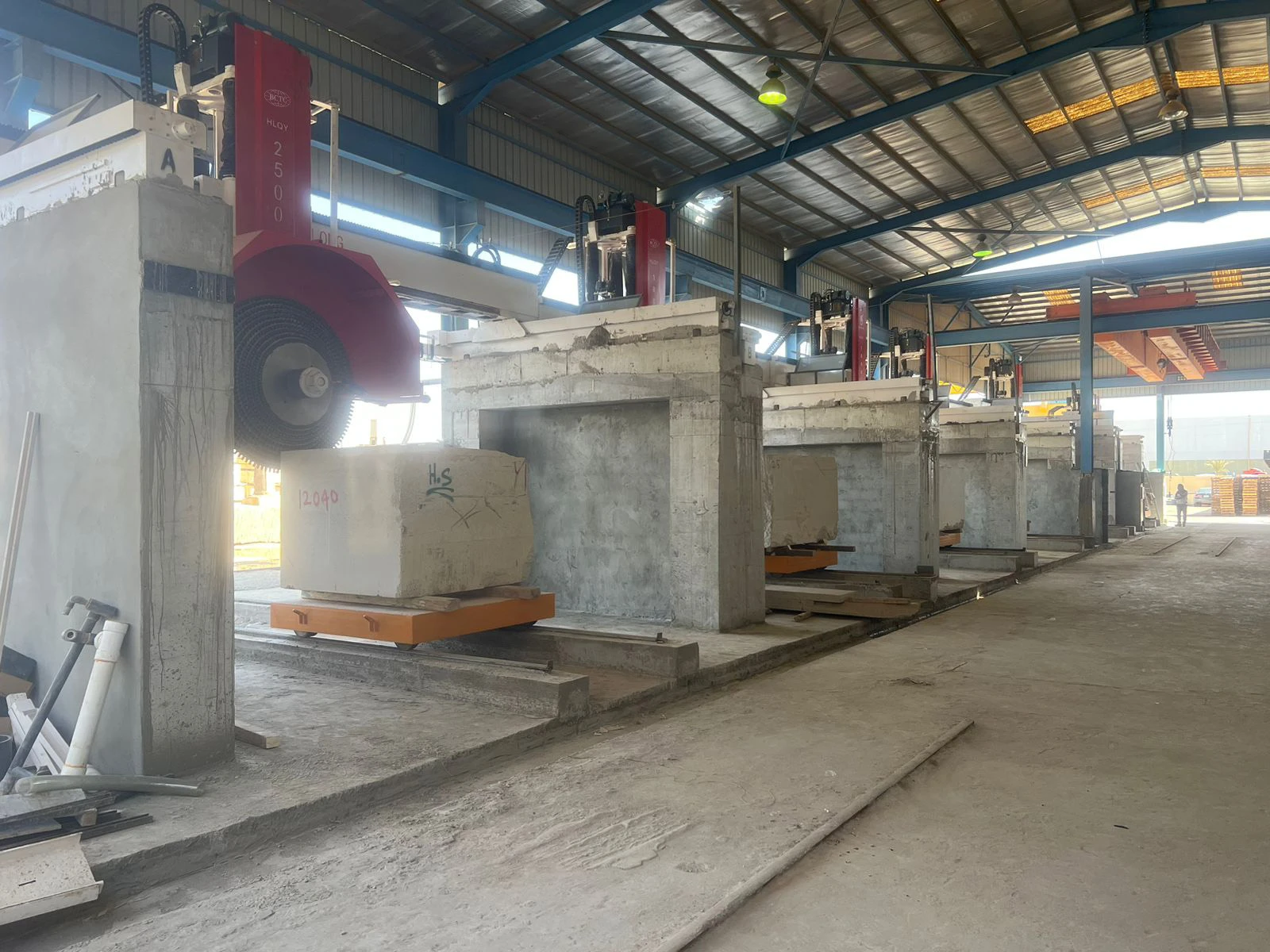

Customer Case
FAQ
Q1: What is the approximate monthly production capacity of the block cutting machine?
A: Under normal two-shift operation, the monthly capacity of a single machine is about 4,000–5,000 ㎡. Actual output may vary slightly depending on stone hardness, slab thickness, blade quality and operator proficiency.
Q2: What stones can this machine cut? Can it cut high-hardness granite?
A: It can cut most natural stones including granite, marble, limestone, sandstone, travertine and basalt, as well as engineered stone blocks. For high-hardness granite such as G654 and Mongolia Black, stable cutting can be achieved with high-grade diamond saw blades as an optional configuration.
Q3: How long does installation take? Do you provide on-site installation service?
A: On-site installation and commissioning of the standard model takes about 7–10 days. We provide paid on-site installation service, with professional engineers guiding assembly, calibrating precision and completing trial cutting.
Q4: Are saw blades included as standard? What blade specifications do you recommend?
A: Saw blades are not included in the standard package and need to be purchased separately. We recommend Φ1600–Φ2200mm conventional diamond saw blades, with a maximum support of Φ2500mm. The number of blades can be adjusted from 1 to 16 according to required slab thickness.
Q5: What are the requirements for factory height and foundation?
A: It is recommended that the clear height of the workshop be no less than 5.5 meters. No special foundation is required; the machine can be placed directly on a flat and hardened concrete floor with a load capacity of ≥ 5 tons/㎡.
