Stone Bridge Saw Machine
Marble Slab Cutting Machine Features
1. Adopt mechanical, electrical and hydraulic integrated transmission structure.
2. The displacement of the girder is equipped with double-sided oil-immersed sealed guide rails and a rotary coded fixed limit system.
3. The structure design is reasonable, the installation speed is fast, and the maintenance is convenient.
4. PLC control, flexible operation of the whole machine, variable frequency speed regulation, stable and reliable transmission, high cutting precision.
5. Intelligent control
- PLC programmatically controls the depth of feed and travel speed
- Large-format sheet cutting can be done automatically with one-time parameter setting
- After the thickness sheet is cut to a set depth, it automatically stops and enters the next cycle
Equipped with manual/automatic dual-mode switching knob and emergency stop protection device

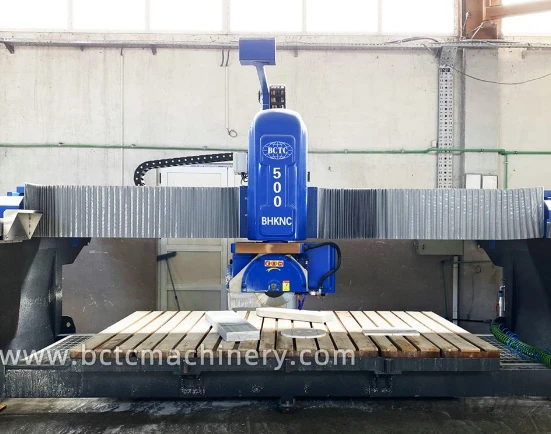

BHKNC-5000 PLUS 5 axis cnc stone cutting machine is a multi-functional CNC stone processing equipment that combines a five-axis bridge cutting machine and an engraving machine. The machine uses a digital brushless shaft drive system combined with high-precision gear motors and protective linear ball guides to ensure a very high level of cutting accuracy.
New: Galvanized Treatment
In order to enhance the durability and corrosion resistance of the equipment, the BHKNC-450Plus five-axis CNC bridge cutting machine has specially added the function of galvanizing. The key components are galvanized to prevent rust and corrosion, making them ideal for long-term use in wet or dusty environments. This feature not only extends the life of the equipment, but also reduces maintenance costs and ensures efficient operation in harsh conditions.
The HKNC series automatic five-axis CNC bridge saw and waterjet cutting machine produced by Hualong Company combines saw blade cutting and waterjet cutting to create a world-class stone processing machine. This sawjet can perfectly cut different materials into precise and complex shapes and angles. The HKNC-650J five-axis CNC bridge saw cutting system is used for cutting slabs, countertops and sinks, profiling, engraving, etc. The SawJet system grinds, contours and shapes three-dimensional shapes.
Equipped with an Italian CNC control system, the stone can be processed according to a pre-set program, combining and alternating the cutting of the saw blade and the water jet, without moving the panels, which helps to optimize the cutting of the stones, thus minimizing the waste of the slabs.
The five-axis CNC bridge stone cutting machine is provided by us, which is suitable for the processing of marble, granite, ceramic tile and quartz stone countertops.
The bridge stone cutting machine is known for its precision, efficiency and user-friendliness. The machining process requires only the operator to take a photo of the sheet and add the drawing layout to the image. The machining steps will be automatically generated by the saw blade, milling cutter, suction cup and platen cylinder according to the drawing. When there is a conflict in the cutting path of the saw blade, the suction cup automatically adjusts the position of the slab. Washbasins, kitchen sinks, countertops and interior corners are machined with a 24,000 rpm motorized spindle-driven milling cutter to ensure excellent cutting results.
Our Service
Pre-Sales Service
Demand Consultation: Provide customers with professional consultation services for stone machinery, recommending appropriate types and specifications based on their specific needs.
During-Sale Service
Customized Solutions: Offer tailored services for non-standard sizes or specialized functions to accommodate diverse customer requirements.
After-Sales Service
Technical Support: Deliver assistance via phone, email, or video conferencing to address operational or technical inquiries, including guidance on installation, usage, and maintenance.
Your Professional Stone Bridge Saw Machine Supplier
Our goal is to become your true partner in the field of stone bridge saw machine China.BCTC machinery is a professional, integrated enterprise specializing in design, manufacturing, mechanical and installation, and sales services. It ranks among the most reputable and technically advanced companies in the stone equipment sector. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Our certifications: We have obtained ISO9001:2015, ISO14001:20105, and High-Tech Enterprise certifications.
Production market: Our stone cutting machines are exported to many countries and regions including Europe, America, and Asia.
Our services: In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Advantages of Stone Bridge Saw Machine
Precision and accuracy
The primary advantage of a bridge saw lies in its supreme precision. With its sturdy structure and advanced technologies like laser alignment and cnc controls, bridge saws produce cuts that are as accurate as they are clean.
Efficiency and time-saving
Time is money in the stone fabrication and construction industries. Traditional methods of cutting stone can be labor-intensive and time-consuming, often involving multiple steps to get the job done.
Reduction in material waste
Stone materials are expensive, and fabricators, renovators, and construction professionals can’t afford to let an ounce of stone go to waste. Every inch of destroyed material can reduce profits and increase project costs. Bridge saws help minimize waste by ensuring precise, deliberate, and accurate cuts.
Specification of Stone Bridge Saw Machine
|
Guide rail |
X, Y, and Z: # 30 |
|
|
Rack |
X、Y |
2MT-WIN |
|
Worktable |
Structure |
Square timber |
|
Worktable size |
3200×2000mm |
|
|
Turning angle |
0-80° |
|
|
Max. weight for turning |
800KG |
|
|
Saw |
Dimension |
450mm |
|
Max. cutting thickness |
100mm |
|
|
Ball screw |
Z |
3210PREYP |
|
Saw motor |
11KW motor, rated: 3000r/min |
|
|
Working air pressure |
0.7-0.8Mpa |
|
|
Voltage |
380V/3P/50HZ |
|
|
Overall dimension |
5.85×4.5×3.3m |
|
|
Weight |
5.5ton |
|
Applicable Scenarios of Stone Bridge Saw Machine
Transforming stone fabrication
For stone fabricators, bridge saws are essential for cutting slabs into custom shapes and sizes and creating countertops, staircases, tiles, or even elaborate stone sculptures. Their precision and customization capabilities mean fabricators can meet complex client demands without compromising quality or time.
Elevating home renovations
Home renovators often work with professionals to incorporate high-quality, custom-cut stone into kitchens, bathrooms, and living spaces. Bridge saws make it easier to craft kitchen islands, marble flooring, or custom backsplashes that fit seamlessly into a client’s design vision.
Stone Bridge Saw Machine Spare Parts
Plc for bridge saw machine (programmable logic controller): The plc is the brain of the bridge saw machine and controls its overall operation. It is responsible for monitoring and controlling all the individual components of the machine, including the motor, worktable, and laser light.
Bridge saw machine motor: The motor is the power source that drives the saw blade and moves the worktable. There are two types of motors used in bridge saw machines: Ac and dc motors.
Encoder for bridge saw machine: The encoder is a sensor that provides feedback on the position of the saw blade and worktable. This information is critical to ensure accurate and precise cuts.
Bridge saw machine main motor: The main motor drives the saw blade and is responsible for providing the cutting power. It is typically a large, high-powered motor that requires regular maintenance to ensure optimal performance.
Laser light for bridge saw machine: The laser light is used to guide the saw blade during cutting. It projects a beam of light onto the surface of the stone, indicating the exact path of the blade. This allows operators to make precise cuts and minimize waste.
Computer screen for bridge saw machine: The computer screen displays all the information related to the machine’s operation, including the cutting parameters, speed, and feed rate. It allows operators to monitor the machine’s performance and make adjustments as needed.
Bridge saw machine electric box: The electric box contains all the electrical components of the machine, including the motor, plc, and other components. It is essential to ensure that the electric box is well-maintained and free from dust and debris.
Bridge saw machine worktable: The worktable is where the stone is placed for cutting. It moves along the x and y-axis and provides support for the stone during cutting. The worktable must be kept clean and level to ensure accurate cuts.
Packing and Shipping of Stone Bridge Saw Machine
|
Packing |
Wooden box |
|
Shipping |
Shipped by road, sea, rail |
FAQ
Q: I want to confirm that your company is a manufacturer. Are you a manufacturer?
A: Yes, we are a manufacturer with independent R&D and production capabilities. All stone machines are independently designed and produced by BCTC. At present, BCTC has obtained 36 patent technologies.
Q: We are in urgent need of this stone cutting machine. How long can we arrange the delivery at the earliest?
A: After receiving the deposit, we will give priority to production, and the regular delivery cycle is 30 days.
Q: Is the quality of BCTC's stone machine guaranteed? What is the warranty policy?
A: We promise that the product quality is stable and reliable, and provide 1 year free warranty service.
Q: How complicated is the operation of this 5 axis cnc stone cutting machine?
A: The equipment is humanized and easy to operate. We will provide professional online operation training for each buyer.
Q: How can I get the best price?
A: Hello, the best quotation needs to be evaluated based on specific needs. Please provide detailed requirements and contact customer service to customize a plan for you.
BCTC Machinery is one of the most professional stone bridge saw machine manufacturers and suppliers in China, specialized in providing high quality products and service. Please feel free to buy high-grade stone bridge saw machine from our factory.
