As a seasoned supplier of stone bridge saw machines, I understand the paramount importance of proper calibration for these precision tools. A well - calibrated stone bridge saw machine not only ensures accurate cuts but also enhances the overall efficiency and longevity of the equipment. In this blog, I'll share a comprehensive guide on how to calibrate a stone bridge saw machine.
Understanding the Basics of a Stone Bridge Saw Machine
Before delving into the calibration process, it's crucial to have a basic understanding of what a stone bridge saw machine is. A Stone Cutting Bridge Saw is a specialized piece of equipment used in the stone processing industry. It is designed to cut large slabs of stone, such as marble, granite, and quartz, with high precision. The machine consists of a bridge structure that spans over the stone slab, a cutting blade mounted on a moving carriage, and a control system to manage the cutting process.
Pre - Calibration Checks
Before starting the calibration process, there are several pre - calibration checks that you should perform:
1. Visual Inspection
Inspect the machine for any visible signs of damage or wear. Check the bridge structure for cracks or misalignments, the cutting blade for dullness or damage, and the guide rails for any debris or scratches. Any issues identified during the visual inspection should be addressed before proceeding with the calibration.
2. Clean the Machine
Clean the entire machine, especially the guide rails and the cutting blade. Use a clean cloth and a suitable cleaning agent to remove any dust, dirt, or stone particles. A clean machine will ensure smooth movement and accurate calibration.
3. Check the Lubrication
Proper lubrication is essential for the smooth operation of the machine. Check the lubrication levels of all moving parts, such as the guide rails, the carriage, and the blade shaft. Add lubricant as needed according to the manufacturer's recommendations.
Calibrating the Cutting Blade
The cutting blade is one of the most critical components of a stone bridge saw machine, and its calibration is essential for accurate cuts.
1. Blade Alignment
The first step in calibrating the cutting blade is to ensure its proper alignment. Use a straightedge or a laser alignment tool to check if the blade is parallel to the guide rails. If the blade is misaligned, adjust the blade mounting bolts until it is perfectly parallel.
2. Blade Height
The height of the cutting blade also needs to be calibrated. The blade should be set at the correct height to ensure that it cuts through the stone slab at the desired depth. Use a height gauge to measure the distance between the blade and the stone surface. Adjust the blade height using the height adjustment mechanism on the machine until the desired depth is achieved.
3. Blade Tension
Proper blade tension is crucial for the stability and performance of the cutting blade. Check the blade tension using a tension gauge. If the tension is too loose, the blade may wobble during cutting, resulting in inaccurate cuts. If the tension is too tight, it may cause excessive wear on the blade and the machine. Adjust the blade tension according to the manufacturer's specifications.
Calibrating the Guide Rails
The guide rails play a vital role in the movement of the cutting blade and the carriage. Proper calibration of the guide rails ensures smooth and accurate movement of the machine.
1. Rail Alignment
Check the alignment of the guide rails using a straightedge or a laser alignment tool. The rails should be perfectly parallel to each other and to the cutting blade. If the rails are misaligned, adjust the mounting bolts or the rail adjustment mechanisms until they are properly aligned.
2. Rail Leveling
Level the guide rails to ensure that the carriage moves smoothly along them. Use a spirit level to check the levelness of the rails. If the rails are not level, adjust the leveling feet of the machine until the rails are perfectly horizontal.
3. Rail Clearance
Check the clearance between the carriage and the guide rails. The clearance should be uniform along the entire length of the rails. If the clearance is too large, the carriage may move erratically, resulting in inaccurate cuts. If the clearance is too small, it may cause excessive friction and wear on the rails and the carriage. Adjust the clearance as needed using shims or other adjustment mechanisms.
Calibrating the Control System
The control system of a stone bridge saw machine is responsible for managing the cutting process, including the speed, the feed rate, and the cutting depth. Proper calibration of the control system is essential for accurate and efficient operation.
1. Speed Calibration
Calibrate the cutting speed of the machine according to the type and thickness of the stone being cut. Use a tachometer to measure the actual speed of the cutting blade and compare it with the set speed on the control panel. If there is a discrepancy, adjust the speed control settings until the actual speed matches the set speed.
2. Feed Rate Calibration
The feed rate is the speed at which the carriage moves along the guide rails during the cutting process. Calibrate the feed rate using a feed rate measuring device. Adjust the feed rate control settings on the control panel until the actual feed rate matches the desired rate.
3. Cutting Depth Calibration
Calibrate the cutting depth control on the control system. Use a depth gauge to measure the actual cutting depth and compare it with the set depth on the control panel. If there is a difference, adjust the depth control settings until the actual depth matches the set depth.
Testing the Calibration
After completing the calibration process, it's important to test the machine to ensure that it is operating correctly.
1. Make a Test Cut
Make a test cut on a scrap piece of stone. Check the accuracy of the cut, including the straightness, the depth, and the smoothness of the cut edges. If the cut is not satisfactory, re - check the calibration and make any necessary adjustments.
2. Check the Machine Performance
Monitor the machine's performance during the test cut. Check for any unusual noises, vibrations, or movements. If any issues are detected, stop the machine immediately and investigate the cause.
Conclusion
Calibrating a stone bridge saw machine is a complex but essential process that requires attention to detail and the use of proper tools and techniques. By following the steps outlined in this guide, you can ensure that your Stone Bridge Saw machine is calibrated correctly, resulting in accurate cuts, improved efficiency, and extended equipment life.

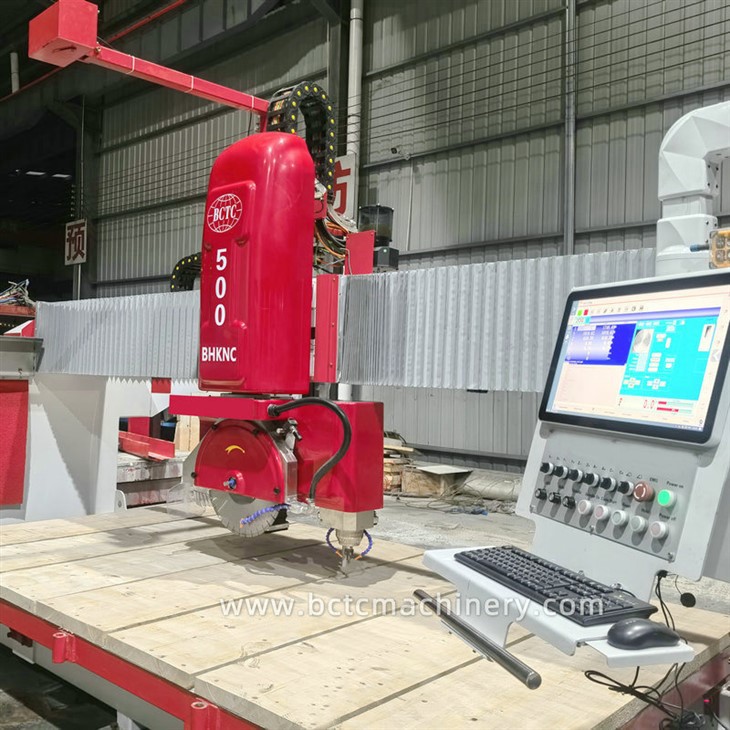

If you are in the market for a high - quality stone bridge saw machine or need further assistance with calibration and maintenance, we are here to help. Our company offers a wide range of Marble Cnc Machine and stone bridge saw machines that are known for their reliability and performance. Contact us today to discuss your requirements and explore our product offerings.
References
- Manufacturer's manual of the stone bridge saw machine
- Industry standards and best practices for stone processing equipment calibration
