In China's waterjet cutting machine industry, BCTC is one of the most familiar brands for domestic and foreign customers, and it is also a manufacturer of waterjet cutting machines with more sales in China. The company not only has first-class waterjet manufacturing technology and service quality, but also is the earliest enterprise in China to carry out the R&D and production of AC five-axis waterjet.
BCTC AC five-axis waterjet CNC machine is mainly suitable for 330cm*210cm or 410cm*210cm specification cutting table, and the cutting angle can reach ±50 degree bevel. The equipment is widely used in the field of sintered rock processing, which can not only complete 45-degree bevel cutting and splicing table processing, but also can be used for sintering and making complex products such as sintered rock sinks and sintered rock coffee tables.
BCTC has three specifications of 5-axis waterjet cutting machine:
1. 2015 bridge type five-axis CNC waterjet
2. 3020 bridge type 5-axis waterjet
3. 4020 bridge type five-axis waterjet cutting machine
Comparison of different waterjets:
Three-axis waterjet cutting machines are widely used in the glass, tile, sintered grid and metal industries. Its cutting method is vertical, which has an advantage in cutting speed.
Five-axis waterjet: AB five-axis CNC waterjet cutting machine is widely popular in ceramic tile and stone decoration processing factories. The cutting head can make an oblique cut of 0-10 degrees in the vertical direction. When cutting tiles or stone parquet, there is no need to manually trim the edges again, which greatly improves production efficiency.
The result of using a five-axis waterjet is very good. Compared with the three-axis waterjet cutting machine, the five-axis waterjet has the characteristics of higher cutting efficiency and faster speed. In particular, the cutting edge is smoother, and the processing requirements can be met without polishing after cutting.
Feature

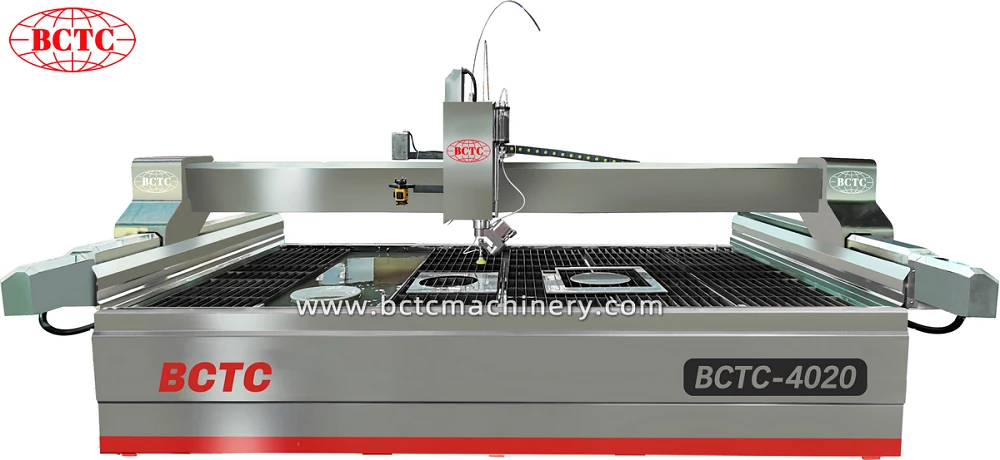

BCTC 4020 CNC waterjet cutting machine is based on the three-axis waterjet cutting platform with the addition of A axis and B axis.
- The cutting head can swing in any direction, supporting 0-10 degree bevel cutting.
- The cutting shape, processing speed, cutting size, etc. are all controlled by the Weihong operating system.
- Through the CAD software preset graphics, combined with the real-time path calculation system, according to the properties and thickness of the workpiece to be processed, the parameters are adjusted, and the swing of the five-axis cutting head is dynamically controlled according to the needs during the cutting process.
- The core components are processed and manufactured by imported precision CNC machine tools to ensure the accuracy and stability of the machinery.

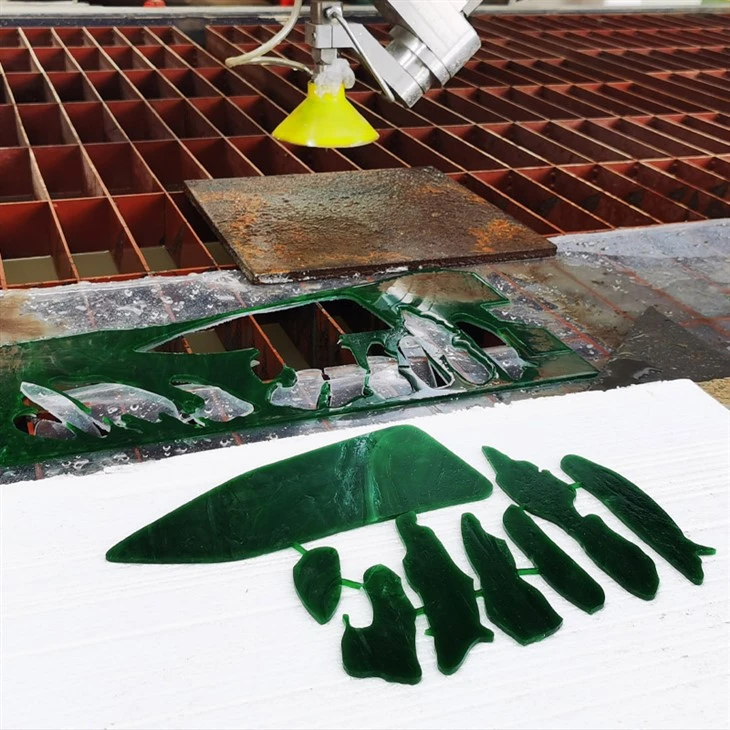

- Adopt X, Y, Z, A, B five-axis linkage technology to support multi-material cutting processing.
The complete waterjet cutting configuration includes the following components:
- Water jet cutting table
- CNC water jet control system
- Abrasive supply system
- Water jet ultra-high pressure supercharger
- Circulating cooling tower
